Product Name：

HPA012(N)
Date： 2018-07-27

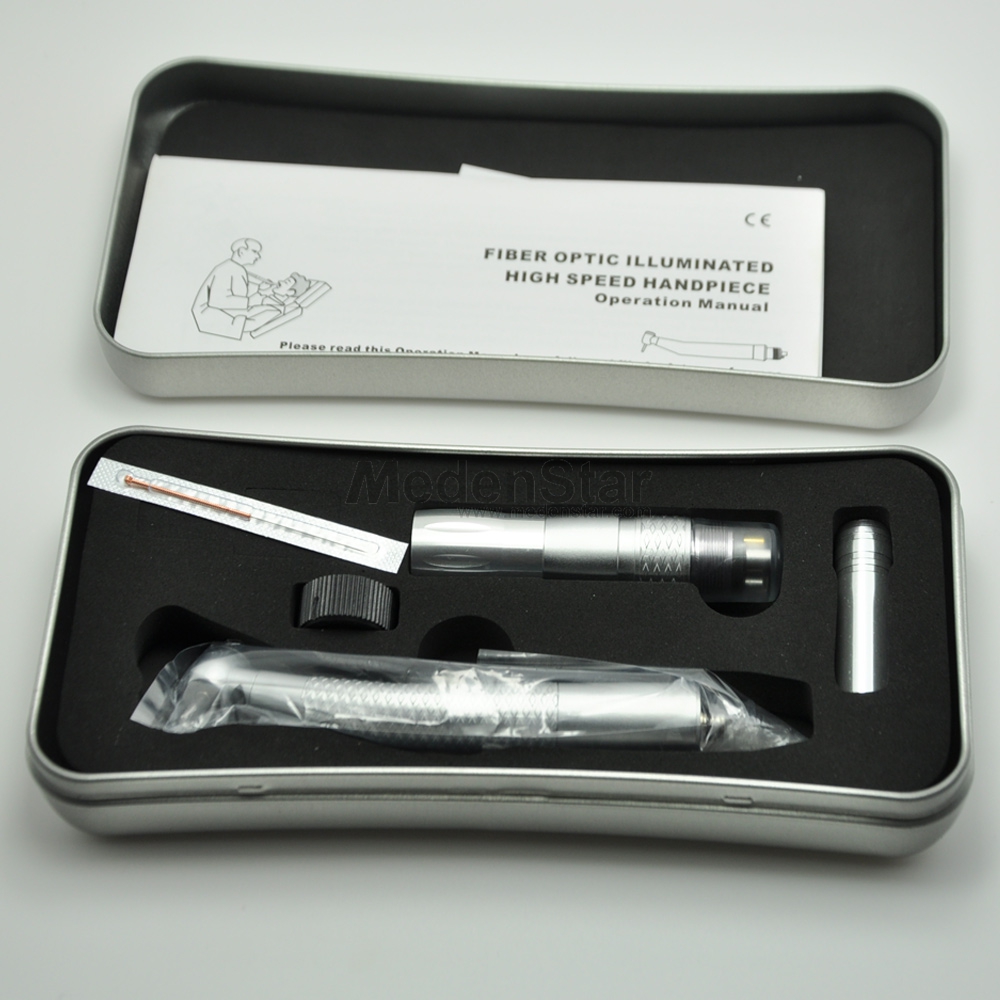

NSK Fiber Optic Handpiece



6-Hole Fiber Optic Handpiece With Quick Couplin

Chuck Type:Push Button, Compatible with NSK Machlite/Phatelus

Bearing:Stainless bearing

Spray:Triple water spray

Working Air Pressure:0.20-0.25MPa(0.22MPa prefrred)

Rotation Speed:350,000-400,000R.P.M(Standard Head);

                          280,000-320,000R.P.M(Torque Head);

Bur Applicable:Φ1.595-1.600mm

Product Parts:
Consists of handpiece head, handle, caudal thread, cartridge.
Working Conditions:
1.Air pressure 0.25~0.30mpa,must be filtrated.
2.Use high speed dental bur with shaft diameter Φ1.59~1.60mm×21-23mm and roghtness less than 0.8um.
3.The amount of handpieces spray or water spray should be able to adjusted.
4.Hard glass fiber,can be repeatedly sterilized in high temperautre and pressure.
Product Scope:
Only used for drilling, molar of stomatology clamping high-speed dental burs.



MDA012(N) Handpiece we Provide Two Kind Of Head For Choice

MDA012(N)S

MDA012(N)T

Standard Head

Torque Head

1.Clamping force of handpiece is:20-45N
2.Noise not exceed 70dB
3.At 25-30 atmosphele pressure,350,000-400,000R.P.M(Standard Head);280,000-320,000R.P.M(Torque Head);
4.Optical handpiece ,3 point water spray,double air tracks, quick coupling, light guide vitreous, illumination≥25000LUX. Voltage is 3.3V±0.1V, LED light.


Environmet-friendly fiber opitic handpiece tube:
If the dental unit don’t have the optical fiber system,please insert our optical fiber tubing and electricity borad in the dental ubit,
then it can use our optical fiber handpiece and inclube the high speed handpiece which compliance with international standards.

Electricity board:
1.Power in:12-24VFIBER OPTIC HANDPIECE
2.Power out:2.5-3.5V(adjustable)FIBER OPTIC HANDPIECE
3.Output delay:0-12s(adjustable)
4.Linkage air pressure:P＞0.2Mpa
5.Control ways:2 ways
